Beschrijving

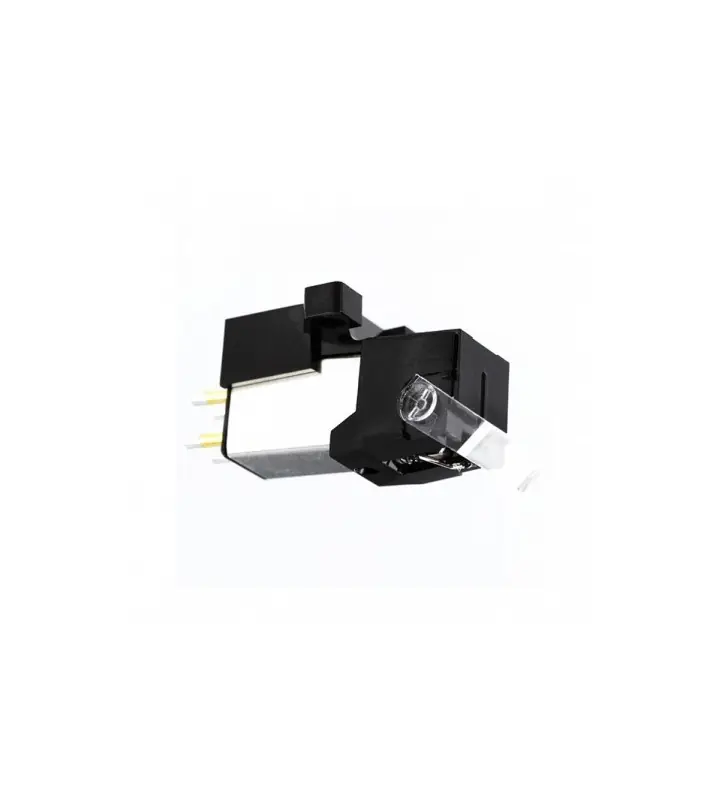

Tonar C-Flip Draaitafel Element MM

Features:

• Output: 3.5mV at 1 KHz 5,0 cm/sec
• Channel balance: within 2.5 dB at 1 KHz
• Channel Separation: Meer dan 18 dB op 1 KHz
• Load impedance: 47 k. Ohm
• Load capacitance: 100 pF
• Static compliance: 12 x 10-6 cm/dyne
• Dynamic compliance: 5 x 10-6 cm/dyne
• Tracking force: 1,5 – 2,5 gram (opt. 2,0 gram)
• Stylus tip radius: 0.6 mil elliptical
• Stylus tip material: bonded diamond
• Tip diameter: 0.3 mm
• Cantilever: Carbon fiber
• Cartridge weight: 5 grams ±0.5gr
• Frequency response: 20 – 20.000 Hz. ±3dB
